China Suppliers Factory Submerged Roll Mechanical Seal Graphite-Silicon Carbide Cartridge Seal for Industrial Equipment

Submerged roll mechanical seals are essential sealing solutions utilized in industrial machinery, ensuring optimal performance and reliability. Manufactured in China, these seals feature multiple sealing lips and a robust skeleton structure, designed from high-temperature and corrosion-resistant premium materials. By effectively preventing the leakage of bearing grease, our seals safeguard against contamination of process media, significantly minimizing unplanned downtime. As a leading supplier with a state-of-the-art factory, we guarantee that our submerged roll mechanical seals deliver unparalleled protection and assurance for continuous production. Trust in our industry expertise for your sealing needs
    Contact us
    Product Details

    Product Introduction

    The submerged roll mechanical seal constitutes a critical sealing method within industrial equipment. The stopper assembly body presents a circular configuration, formed by the mating assembly of two arc-shaped components. Radial bolt holes, perpendicular to the mating plane, are machined therein for the installation of radial bolts. Axial bolt holes are circumferentially distributed at equidistant intervals around the stopper assembly body for the installation of axial bolts. This utility model eliminates the need for mechanical seal adjustment. Through coordinated regulation of radial bolts and axial preload bolts, it achieves effective sealing between the moving and stationary seals. Its unique design effectively isolates process media, prevents contamination of bearing lubricants, significantly reduces unplanned downtime, and provides reliable assurance for continuous production.

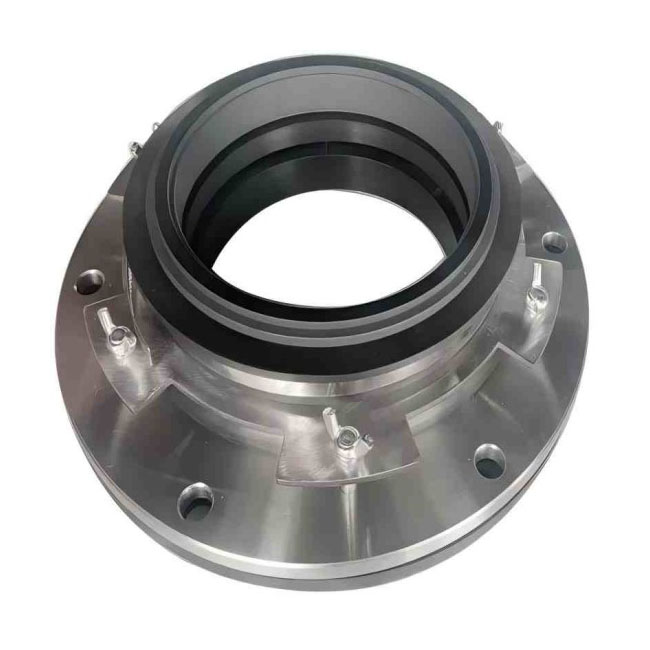

    CMK-140 (2)
    CMK-140 (1)

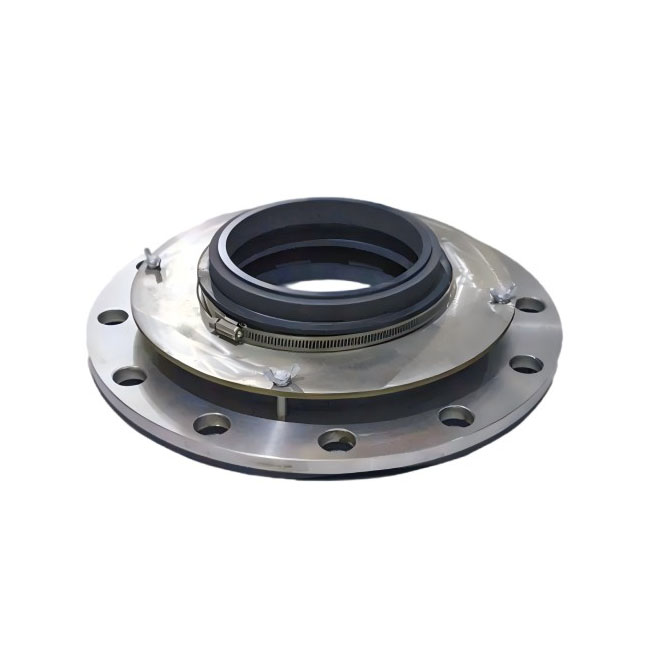

    CMK-140 (3)
    Features
    🛡️
    Featuring a spring-loaded stationary design, it effectively prevents corrosion and seizure. The sealing surfaces commonly employ hard materials such as silicon carbide, supplemented by corrosion-resistant elastomers like fluororubber, to accommodate diverse media including acids and alkalis, as well as varied temperature and pressure conditions.
    ⚙️
    The core friction pair undergoes precision machining to ensure sealing surface quality. Utilising high-performance sealing materials (e.g., fluororubber) and corrosion-resistant metals guarantees seal durability under demanding operating conditions.
    🔧
    This seal adopts a cartridge-type design, featuring a compact and rational structure for straightforward and rapid installation. Certain models of submerged roll mechanical seals employ a 'J'-type rubber bellows mechanism. The shaft and moving ring bellows exhibit no relative motion, eliminating wear and hysteresis phenomena while automatically compensating for axial displacement and radial runout defects.
    Frequently Asked Questions
    Q What is a submerged roll mechanical seal and where is it used?
    A submerged roll mechanical seal is a critical sealing device used in industrial equipment—particularly in papermaking, metallurgy, and chemical processing—where rolls operate in submerged or wet environments and reliable liquid containment is essential.
    Q What materials are used for the sealing surfaces?
    The sealing surfaces typically use hard materials such as silicon carbide for wear resistance, combined with corrosion-resistant elastomers like fluororubber to handle aggressive media including acids, alkalis, and high-temperature fluids.
    Q How does the cartridge-type design benefit installation?
    The cartridge-type design pre-assembles all sealing components into a single compact unit, allowing for fast and straightforward installation without requiring precise field adjustment, which greatly reduces downtime and the risk of installation errors.
    Q How does the 'J'-type rubber bellows mechanism work?
    The 'J'-type rubber bellows connects the shaft and moving ring without relative motion between them, which eliminates wear and hysteresis effects. It also automatically compensates for axial displacement and radial runout, maintaining a consistent seal even under dynamic shaft movement.
    Q How are radial and axial bolts used to achieve effective sealing?
    The stopper assembly body uses radial bolts (perpendicular to the mating plane) and axial preload bolts (circumferentially distributed) in coordination. Adjusting both bolt types applies balanced clamping force on the seal faces, achieving effective sealing between the moving and stationary rings without requiring additional mechanical seal adjustment.
    Q How does this seal help reduce unplanned downtime?
    By isolating process media from bearing lubricants, using precision-machined friction pairs, and incorporating self-compensating bellows mechanisms, the seal minimizes leakage and wear-related failures—significantly reducing unplanned stoppages and supporting continuous production reliability.
