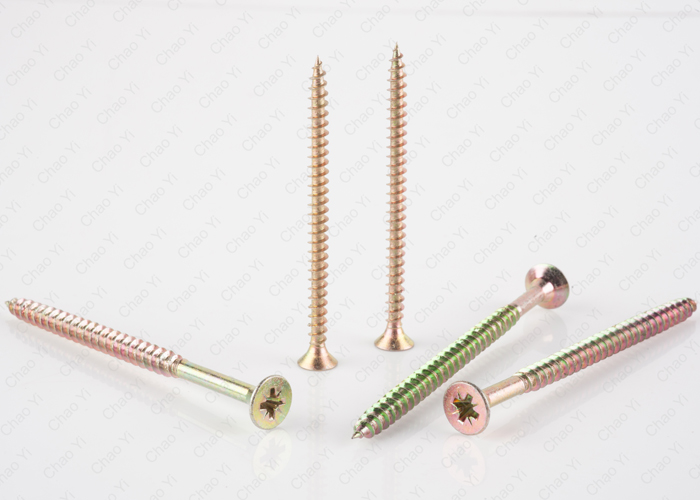

Chipboard Screw
Characteristics
● Coarse, widely-spaced thread ('plastic thread') for strong grip in soft materials.
● Sharp point — drives directly into MDF, particle board and softwood with little or no pre-drilling.
● Case-hardened (carburized) carbon steel — stronger than ordinary wood screws.
● Countersunk head sits flush with the surface; Phillips or Pozi drive.
● Available in carbon steel (zinc/phosphate finish) or stainless 304/316 for damp areas.
Uses
● Assembly of flat-pack and panel furniture (MDF, particle board, plywood).
● Kitchen cabinets, wardrobes, shelving and drawer units.
● General indoor woodwork and timber joinery.
Fiberboard Screw - DIN 7505 (General Information)
| Item | Description |
| Product name (CN) | Fiberboard / Chipboard Screw) |
| Standard | DIN 7505 - 1986 (German); Type A (countersunk) common |
| Category | Self-tapping screw (wood / engineered wood) |
| Thread type | Plastic-specific self-tapping thread, coarse, 60° |
| Ref. GB standards | GB/T 3098.5-2016, GB/T 5280-2002, GB/T 5267.1-2002, GB/T 922-1986 |
| Size range | Dia. 2.5–6 mm; Length 10–200 mm (common 16–160 mm) |
| Product grade | Grade A |
