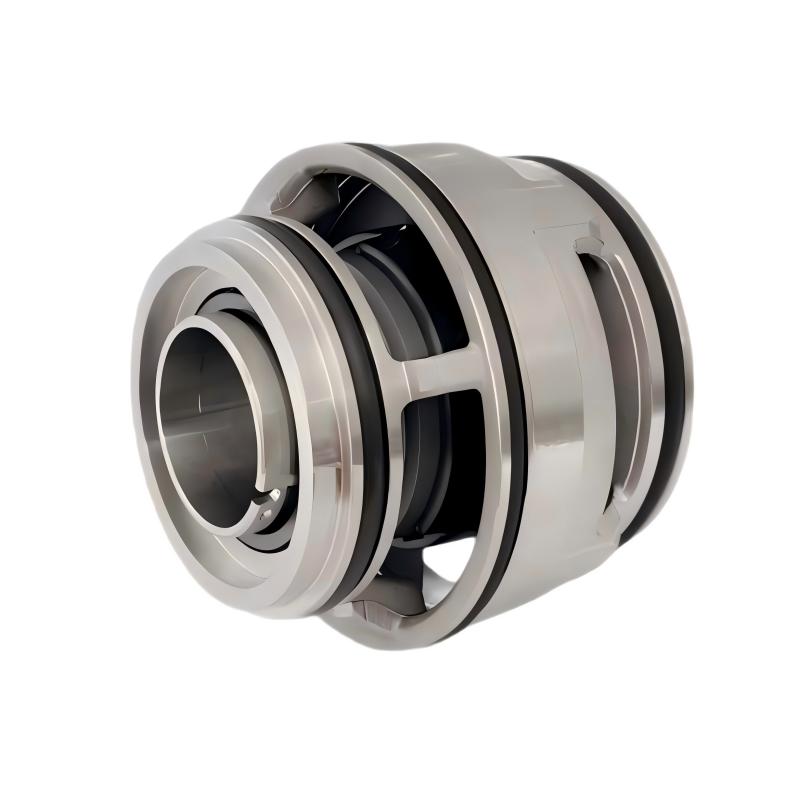

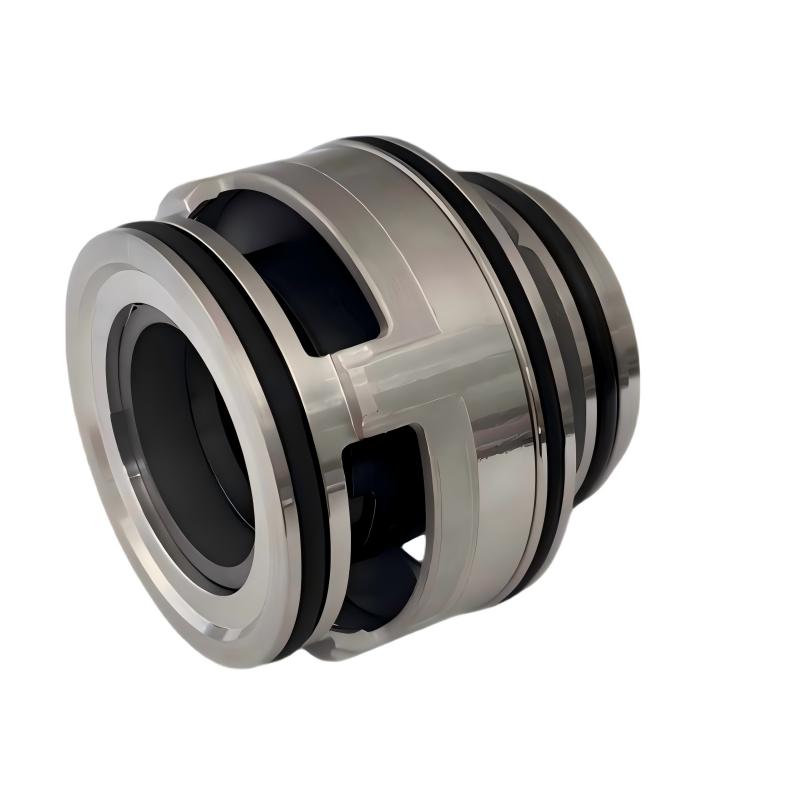

China Suppliers Factory Grundfos GLF-43 Submersible Sewage Pump with Durable Mechanical Seal

Product Introduction

The Grundfos GLF-43 mechanical seal employs a double-ended, multi-spring configuration. This design delivers more uniform face loading and dual sealing assurance, significantly enhancing sealing reliability. Furthermore, the dynamic and static seal faces typically utilise high-performance materials such as silicon carbide or tungsten carbide, renowned for their exceptional hardness and outstanding wear resistance. Auxiliary seals, such as O-rings, offer options including nitrile rubber and fluorocarbon rubber, while springs and metal components utilise materials like SS304 and SS316. Collectively, these materials ensure the seal's corrosion and wear resistance in complex media, enabling it to handle water, oil, sewage, wastewater, weak acids, weak alkalis, and other mildly corrosive substances.

This mechanical seal is specifically engineered for Grundfos heavy-duty submersible sewage pumps, primarily serving wastewater treatment and water supply industries. Its design parameters—such as an operating pressure typically not exceeding 0.25 MPa and a temperature range of -20 to 100°C—are optimised for these application scenarios.

Features

• 1 Featuring a double-ended, multi-spring structure, this design delivers more uniform end-face force distribution and dual sealing assurance, significantly enhancing sealing reliability.
• 2 The dynamic and static ring sealing surfaces typically employ high-performance materials such as silicon carbide or tungsten carbide, renowned for their exceptional hardness and outstanding wear resistance. Auxiliary seals, such as O-rings, offer options including nitrile rubber and fluorocarbon rubber, while springs and metal components utilise materials like SS304 and SS316. Collectively, these materials ensure the seal's corrosion and wear resistance in complex media, enabling it to handle water, oil, sewage, wastewater, weak acids, weak alkalis, and other mildly corrosive substances.
• 3 Core components undergo precision machining to guarantee performance, utilising premium stainless steel and corrosion-resistant materials. All compensating elements are pre-assembled for straightforward installation and minimised error.
• 4 Bolt-driven transmission ensures reliable operation. Specifically engineered for Grundfos heavy-duty submersible sewage pumps, its purpose-built structure facilitates convenient installation and adjustment.
