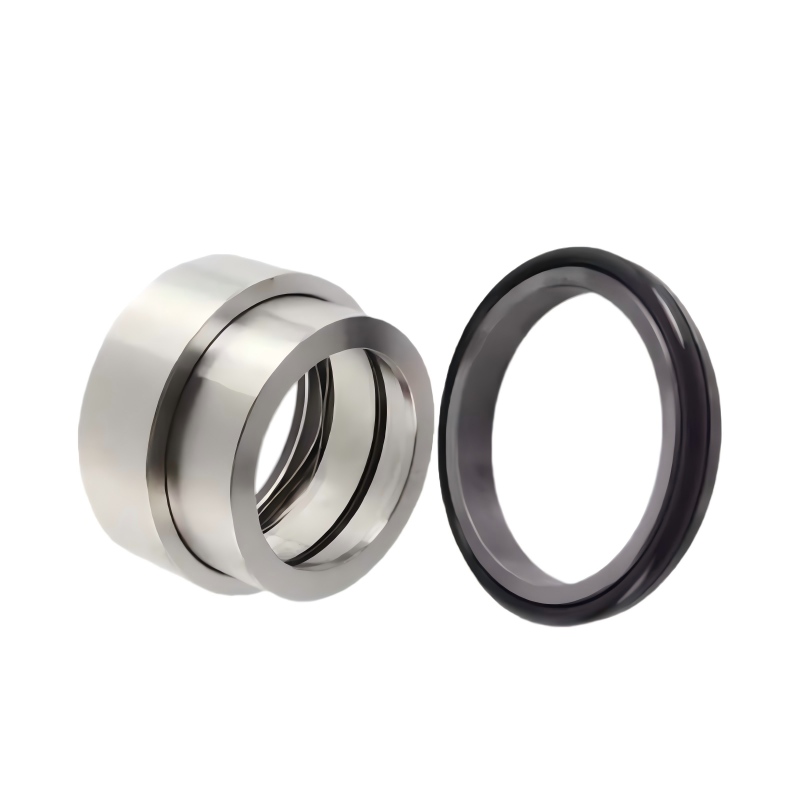

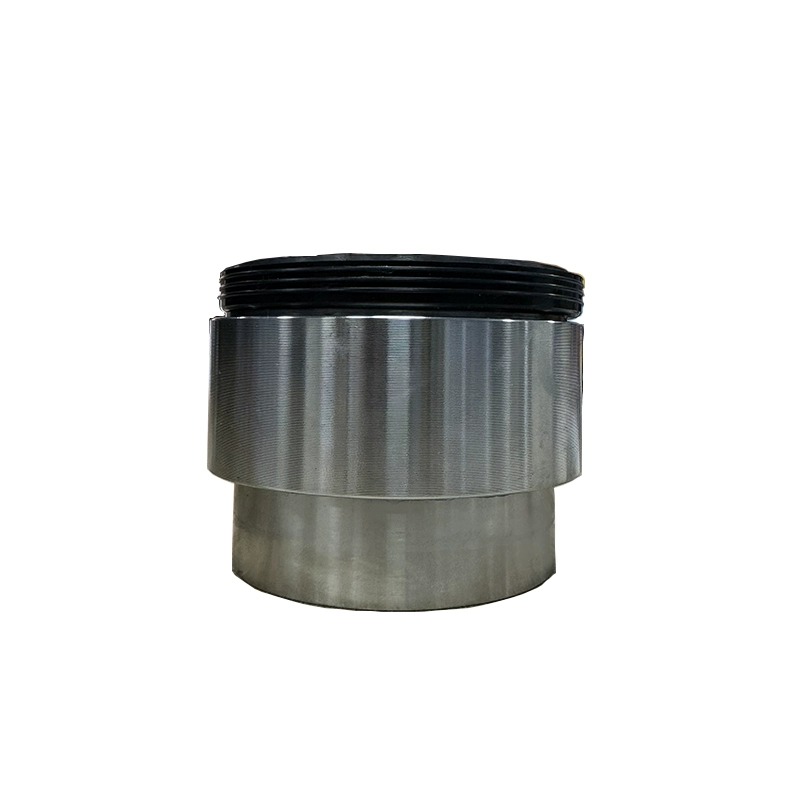

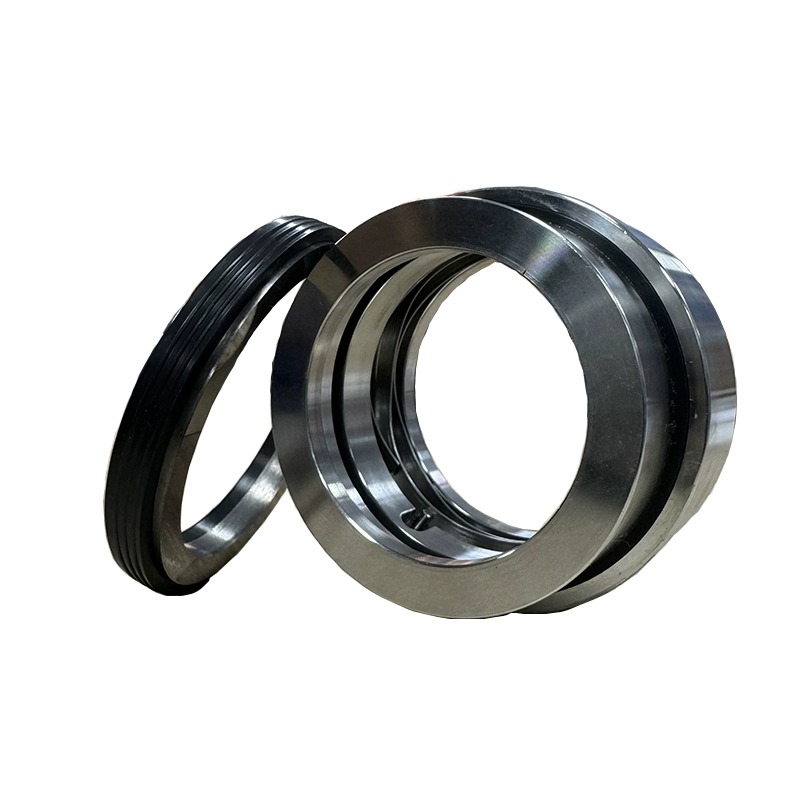

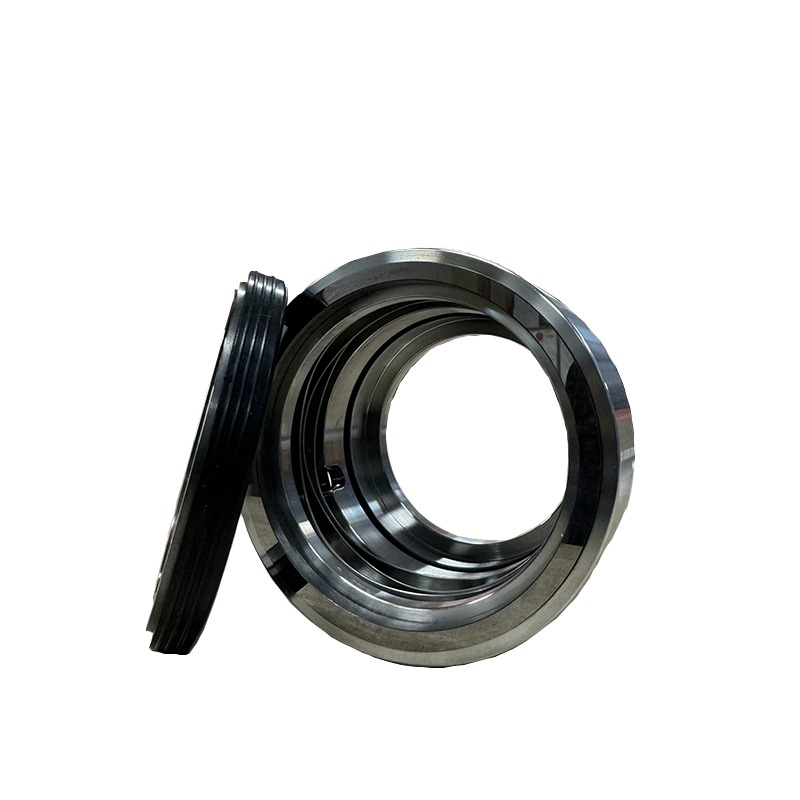

China Suppliers Factory AK5M/MT03 Mechanical Seal Pulp Pump - Stainless Steel, Corrosion & Oil Resistant
Product Introduction
The AK5M/MT03 mechanical seal is specifically engineered for demanding conditions in industrial pumps such as pulp pumps. Combining durable materials with an anti-clogging design, it delivers a dependable sealing solution for your equipment. Its advantages include anti-clogging construction, robust materials, and straightforward installation and replacement. Material options for the rotating and stationary seal faces encompass high-performance choices such as graphite, silicon carbide, and tungsten carbide. These materials resist wear and corrosion, effectively handling solid particles and chemicals present in pulp media. Auxiliary seals, such as NBR, EPDM, and Viton, further broaden compatibility with diverse media.
This seal is engineered to significantly enhance the operational reliability of pulp pumps, effectively reducing unplanned downtime and helping to lower maintenance costs.
Features
- 1 Balanced Structure and Broad Adaptability: Featuring a single-face, balanced design that effectively reduces load on the sealing faces, enabling adaptation to a wider pressure range with stable sealing performance. Its wave spring design is isolated from the medium, preventing spring jamming caused by pulp or other impurities and thereby reducing the risk of seal failure.
- 2 Offers multiple friction pair materials including silicon carbide and tungsten carbide, alongside rubber compounds, to suit demanding applications such as pulp processing.
- 3 Precision machining of core friction pairs achieves micron-level flatness. Utilising corrosion-resistant metals and elastomeric materials, it complies with multiple industry standards, ensuring reliable and enduring sealing performance.
- 4 The innovative design isolating the wave spring from the medium effectively prevents blockages. Its compact structure supports multiple shaft diameters, facilitating straightforward installation. It serves as a direct replacement for comparable products from Andritz and Sulzer.
| Technical Features | Single-ended balanced structure, wave spring isolated from medium, wide range of material options |
| Manufacturing Process | High-standard precision machining, stringent material control |
| Design Features | Anti-clogging design, installation-friendly and high compatibility |
Frequently Asked Questions
What industrial applications is the AK5M/MT03 mechanical seal designed for?
The AK5M/MT03 mechanical seal is specifically engineered for industrial pumps operating in demanding environments, with a primary focus on pulp pumps. Its anti-clogging design and corrosion-resistant materials make it well-suited for media containing solid particles, fibres, and aggressive chemicals.
What seal face materials are available for the AK5M/MT03?
The rotating and stationary seal faces are available in high-performance materials including graphite, silicon carbide (SiC), and tungsten carbide (TC). These materials provide excellent wear resistance and corrosion resistance, ensuring long service life in harsh pumping conditions.
Which elastomer options are compatible with this mechanical seal?
The AK5M/MT03 supports multiple auxiliary seal (elastomer) options, including NBR (Nitrile), EPDM, and Viton (FKM). This broad elastomer compatibility allows the seal to handle a wide variety of media and temperature ranges across different industrial processes.
How does the wave spring design prevent clogging in pulp applications?
The wave spring is fully isolated from the pumped medium. This isolation prevents pulp fibres, solid particles, or other impurities from accumulating around the spring, which would otherwise cause jamming and premature seal failure. This design significantly extends the maintenance interval in pulp processing environments.
Is the AK5M/MT03 compatible with seals from Andritz and Sulzer?
Yes. The AK5M/MT03 is designed as a direct drop-in replacement for equivalent mechanical seals from Andritz and Sulzer. Its compact structure accommodates multiple shaft diameters, making cross-brand compatibility and installation straightforward without the need for pump modifications.
What are the key benefits of choosing the AK5M/MT03 over a standard mechanical seal?
Compared to standard mechanical seals, the AK5M/MT03 offers a balanced single-face design for wider pressure range adaptability, micron-level precision-machined seal faces for superior flatness and sealing reliability, an anti-clogging wave spring, and compliance with multiple industry standards. These features combine to reduce unplanned downtime and lower overall maintenance costs.
